Geocell 3″ Ground Grid Heavy Duty Stabilizer Kit BaseCoreHD™

(1 customer review)

$89.00$139.00

[fl_builder_insert_layout id=2331]

We have the strongest Geocell on the Market, backed by our 10 Year Guarantee!

Ideal for driveways, parking pads, and slopes, the 3″ BaseCore HD™ geocell provides high-performance ground stabilization. This increased cell depth allows for more infill material, resulting in exceptional strength, support, and erosion control. Manufactured from UV-stabilized HDPE, the 3″ BaseCore HD™ resists cracking, fading, and extreme weather, requiring less fill material for a stable, long-lasting base. BaseCore HD™ Geocell Specifications:

Cell Dimension 8” x 7.4”
Cell Height 3”
Material Thickness 2.6 mm

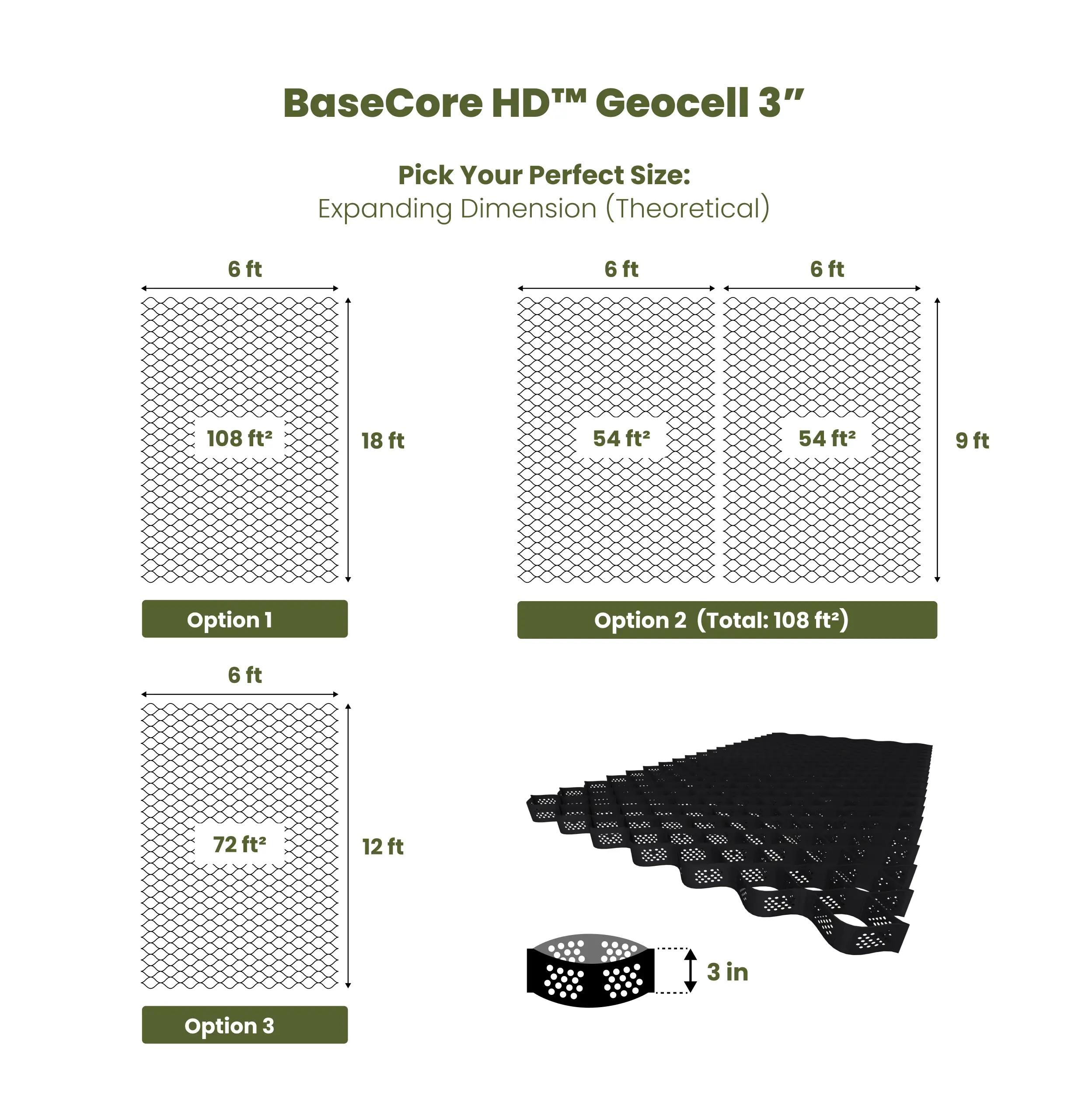

Expanded Size
  •  6’ 4″; x 18’ (approx. 115 sq. feet)
  • 6’ x 9’ (2 pack panels, total: 108 sq. feet)
  • 6’ x 12’ (72 sq. feet)



10 Year Satisfaction Guarantee Badge

SKU: N/A Categories: ,
299d47ba-a4f9-4c13-afd3-701718458654.__CR0,0,970,300_PT0_SX970_V1___
  • HIGH DENSE POLYETHYLENE: BaseCore is made of an extremely thick-gauge high-density polyethylene (HDPE), giving it excellent resistance and stability to all common elements found in soils as well as protection against ultraviolet degradation.
  • STRONG & DURABLE: The BaseCore geocell features a very high tensile strength to withstand large amounts of lateral force and is effective in all climates. It is engineered to support the use of military equipment, semi-trucks, heavy foot traffic, and, of course, your horses.
  • SAVES MONEY & TIME: BaseCore saves your time and money. It reduces the amount of fill that is needed to form a strong base thereby reducing the amount of manpower needed to spread it. Additionally, the excavation depth using geo-cells is ⅓ of what it would be using other materials, like gravel.
  • PROTECTS BASE: For areas where you experience poor or unstable soil, BaseCore eliminates further erosion and allows for immediate foot, horse, or vehicle traffic mobility. BaseCore strengthens and protects the foundation of your arena. Allow BaseCore to do the work, while you enjoy the ride.
  • EASY INSTALLATION: BaseCore is designed to be installed easily without the need for heavy equipment. The flat packages easily expand to a sturdy 6' 4" x 8' section that will secure to adjoining panels.
c8430f77-54b7-452b-94b1-a83a4cfa5b26.__CR0,0,300,400_PT0_SX300_V1___

Stability around your Home, and Farm.

BaseCore is a durable and permeable DIY foundation for your home, farm, driveways and equestrian areas.

Say goodbye to french drain systems and limestone bases with our unique perforated geo-cell panels that simultaneously does both functions.

Protect your building, pasture, and stall investments by keeping them from sinking, washing, or blowing away with an easy-install foundation. Your horse will thank you later as he trots and trains with confidence.

  • Stops Mud
  • Erosion Control
  • Prevents Sinking
  • Effective on slopes up to 39 degrees
f03f3280-22ed-4386-badf-83793d072f66.__CR0,0,350,175_PT0_SX350_V1___
BaseCore Geo-cell

BaseCore is a collapsible geo-cell typically used for roadways or military applications, but we find the same material to be effective for many areas around homes and farms for purposes of driveways, parking pads, shed bases and more. The engineered structure of BaseCore helps spread any applied weight over a greater area.

  • Easy DIY
  • Permeable
  • Durable
7681fa58-6582-496b-9841-e647deefcd24.__CR0,0,220,220_PT0_SX220_V1___

Grass

BaseCore geo-cells eliminate erosion and allow for foundations and immediate foot, horse or vehicle traffic mobility. It acts like rebar to reinforce the ground.

12f9afc7-91db-4698-94ec-3036aa4cb97f.__CR0,0,220,220_PT0_SX220_V1___

Gravel-Lok

Provide benefits for many areas around your home, barn or farm. The perforation (holes) in the BaseCore allow water to move freely without washing out the material, thereby protecting you from sinking, ruts, potholes, runoff and more.

de1d5596-77af-4bbc-8e41-1129c9964497.__CR0,0,220,220_PT0_SX220_V1___

Gravel

Using just 3" of BaseCore, provides you with the same strength as 12" of gravel would without a cellular confinement system like BaseCore. Save on the cost of gravel and add lifetime rigidity to your backyard base, using the HDPE plastic panels that can be expanded to accommodate areas of all sizes.

cc464a04-67a4-42e9-a390-78eef565a3a3.__CR0,0,220,220_PT0_SX220_V1___

Pavers

Protects Your Base from Disappearing BaseCore holds your aggregate material in small cells of plastic, which keeps the material in place and not being pushed down into the sub-base, which creates uneven surfaces.

37638a46-ec07-42d4-ba7e-ace06831bb65.__CR0,0,970,600_PT0_SX970_V1___

Simple To Install

8e67cabc-fc76-4950-a1f5-5c58e99e4684.__CR0,0,970,600_PT0_SX970_V1___ (1)

BaseCore is designed to be installed easily without the need for heavy equipment.

Our BaseCore grids have quick installation that doesn’t require specialists or heavy equipment. You can put in a stable DIY base for your farm, arena, and more in a single day, depending on the project size. Following our simple 6 steps, you can lay the foundation for a base that makes your farm and equestrian investments last a lifetime.

Required Materials:

  • BaseCore Panels
  • Geotextile Fabric
  • BaseClips
  • Infill Material

Suggested Tools:

  • Hammer & Stakes
  • BaseCaps
  • Shovel, Rake or Tractor
  • Plate or Hand Compactor

Complete Your Installation Kit

98a891fa-8ab9-4206-99e1-093770585656.__CR0,0,300,300_PT0_SX300_V1___

Geotextile Fabric

We offer geotextile fabric that is strong, and allows water flow. Nonwoven geotextiles mean that a stronger foundation can be made with fewer materials.

a0266cee-9e1f-40ec-b6a6-20f434647ba3.__CR0,0,300,300_PT0_SX300_V1___

BaseClips

Purchasing several bundles of BaseCore Geo-cell? Use them to connect your expanded BaseCore bundles and ensure your base is strong over the entire area. Pack of 45 connecting clips.

e7fb262c-d59b-4c15-a223-00b114923690.__CR0,0,300,300_PT0_SX300_V1___

BaseCaps

No matter what you’re laying the foundation for, our BaseCaps are universally compatible with all Geo-Cell panels, so you can cover all your stabilization needs.

1 review for Geocell 3″ Ground Grid Heavy Duty Stabilizer Kit BaseCoreHD™

  1. Avatar für Olivia Torres

    Olivia Torres

    I didn’t know if we could do this ourselves or if we were going to hire someone. I was pretty skeptical at first but it was very easy. The directions were great and we don’t have to worry about ruts or dips in the ground. Used it for a parking pad and driveway. Saved money and now have a strong foundation. I spent a fraction of what I would have if I did concrete! Very happy
