Weekend warriors, rejoice. That saggy shed floor, muddy kennel, or waterlogged play area doesn’t need weeks of concrete work or professional installation. With BaseCore grids, you can build a professional-grade, drain-fast base in a single Saturday—and it’ll outlast traditional methods by decades.

What Makes BaseCore Different (And Why Your Backyard Needs It)

BaseCore isn’t your grandfather’s gravel foundation. BaseCore is the high-density polyethylene grids that create an interlocking cellular structure that locks gravel or grass in place while allowing water to drain straight through—preventing the pooling and mud that plague traditional bases.

The BaseCore HD™ cell sizes are almost 50% smaller than others on the market, and 35% smaller than our BaseCore™. This compact cell design is specifically engineered to prevent digging—crucial for kennel applications where determined dogs might otherwise excavate their way to freedom. The smaller cells also create a tighter, more stable surface that won’t shift under heavy loads like riding mowers or workshop equipment.

Key benefits that solve real backyard problems:

  • Eliminates standing water and mud permanently
  • Prevents frost heave damage in cold climates
  • Stops erosion on slopes up to 10% grade
  • Creates a level surface without concrete’s cracking issues
  • Our perforated BaseCore™ geocells allow water to pass through the durable base, helping the site withstand heavy rainstorms.
  • BaseCore™ HD Geocell lasts more than 75 years depending on the specific project application.

How the System Works: Simple Science, Brilliant Results

Picture a honeycomb made from industrial-strength plastic, but flattened and expanded to cover your entire base area. Each cell acts like a miniature retaining wall, holding gravel firmly in place while letting water flow freely through the structure.

The BaseCore HD comes in two strategic heights perfect for backyard projects:

2-inch HD Grids: Install this 2″ geocell panel in uses such as bases for sheds, walkways, paths, and other pedestrian or light-use. These work brilliantly for tool sheds, playhouses, and smaller structures on relatively dry, firm ground. Each panel expands to approximately 54 square feet (6′ x 9′). The 2-inch BaseCore HD option is perfect when you need stability more than extreme drainage.

3-inch HD Grids: ✔ 3″ –  The go-to choice for challenging conditions—heavy clay soils, high-rainfall regions, or anywhere water management is critical. The extra depth provides superior drainage capacity and load distribution. Consider the 3-inch BaseCore HD system for areas with softer soils or higher rainfall.

Using just 3″ of BaseCore, provides you with the same strength as 12″ of gravel would without a cellular confinement system like BaseCore. 2″ BaseCore HD Geocell | Backyard Bases Stabilizer The grids expand accordion-style from compact bundles, and once filled with angular gravel, they create a monolithic base that’s both rigid and permeable—engineering that concrete simply can’t match.

Real-World Applications: From Dog Runs to Dream Sheds

The Weekend Shed Project Ben Koczera from Arizona shares his experience: “The product is excellent. I priced out the cost of building a platform (1 Foot rise) in my back yard for a large fire pit surrounded by chairs using Stone Pavers or just Stone. Both options cost above my budget (several thousand dollars in materials) and that is with me doing the work.” He found BaseCore HD was about half the cost of other options and created a perfectly stable platform in one day.

Kennel Solutions That Actually Work Professional dog trainers know the drainage struggle. Traditional kennel bases either drain poorly (concrete) or become dig-zones (plain gravel). BaseCore HD’s small-cell design solves both problems simultaneously. The grids prevent excavation while maintaining drainage rates that keep surfaces dry even during monsoon season. For comprehensive kennel solutions, explore BaseCore’s commercial applications which detail the full range of agricultural and animal enclosure uses.

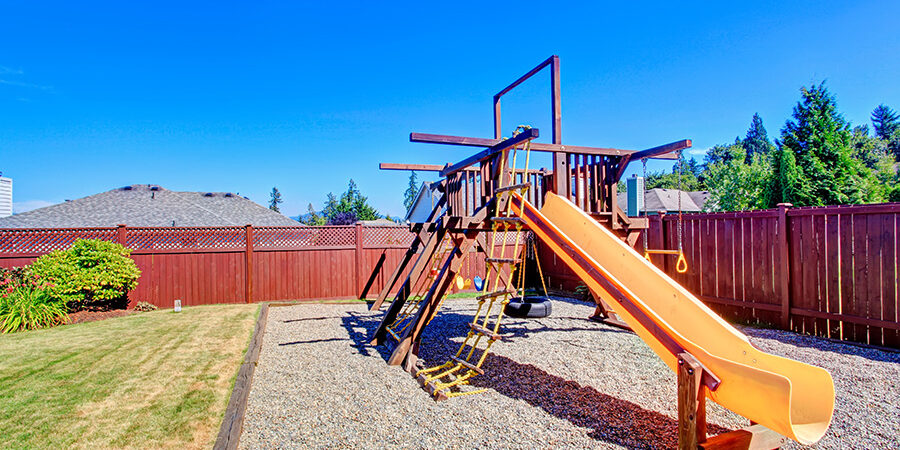

Play Area Transformations
 Parents installing swing sets and trampolines face a unique challenge: creating a safe, stable surface that won’t become a mud pit or concrete hazard. BaseCore HD with rounded pea gravel infill creates a cushioned, draining surface that meets CPSC playground safety standards while eliminating puddles.

Additional proven applications:

  • Hot tub and spa pads requiring level, draining surfaces
  • Greenhouse foundations needing both stability and drainage
  • Garbage enclosure bases that prevent odor-trapping puddles
  • Equipment storage pads for lawn tractors and tools
  • RV and boat parking areas supporting heavy loads

BaseCore HD vs. Traditional Methods: The Clear Winner

Traditional concrete pads crack, hold water, and require professional installation. Treated timber frames rot within 5-10 years. Plain gravel shifts and sinks. BaseCore HD addresses every shortcoming:

  • Installation Speed: One day vs. one week for concrete curing
  • Drainage: Natural permeability vs. zero drainage for concrete
  • Longevity: 75+ years material life vs. 10-15 for timber
  • Cost: Approximately 40-60% less than professional concrete work
  • DIY-Friendly: No special tools beyond basic landscaping equipment
  • Environmentally Sound: 100% recyclable HDPE, promotes natural water recharge

Concrete can drive large-scale commercial budgets tens of thousands over what the client may want to pay. BaseCore™ keeps costs down through product cost, less infill material, and reduced labor needs. Unlike concrete that channels water to storm drains, BaseCore HD bases act like natural ground, filtering runoff and reducing environmental impact. Many municipalities now require permeable surfaces for new construction—BaseCore HD exceeds these EPA stormwater management guidelines.

Your DIY Installation Guide: From Bare Ground to Bulletproof Base

Step 1: Calculate Your Materials Measure your structure’s footprint and add 12 inches on all sides. For a 10×12 shed, plan for a 12×14 base. Each 2″ HD panel covers approximately 54 square feet when expanded. You’ll need angular gravel for infill (typically ¾” minus). Our material calculator helps determine exact quantities based on your project dimensions.

Step 2: Prepare the Ground Level the area and excavate 4-6 inches deep (2-3 inches for the grid plus 2-3 inches for base rock). Compact the soil and add a layer of geotextile fabric to prevent soil migration and weed growth. Quality landscape fabric makes a significant difference in long-term performance.

Step 3: Expand and Position Grids When spreading the material out, it’s like a webbing that needs to be stretched out and held in place. You’ll need ground stakes to secure the grids open as you pull the material across the coverage area. BaseCore HD expands easily—stretch each section to full size and connect adjacent panels using the included BaseClips.

Step 4: Fill with Gravel Use angular gravel (not rounded river rock) for maximum lock-up. BaseCore HD 2-inch offers superior durability and stability when filled properly. Slightly overfill each cell, then screed level with a straight board. Compact lightly with a plate compactor or hand tamper.

Step 5: Add Your Structure Place your shed, kennel panels, or play equipment directly on the completed base. The surface is immediately ready for use—no waiting for concrete to cure. For heavier structures like large sheds or workshops, consider our heavy-duty 4-inch BaseCore HD for maximum support.

FAQs

Q: Can I install BaseCore HD on a slope? A: Yes, BaseCore HD handles slopes effectively. For steep slopes, terracing may be required for optimal stability. Learn more about slope stabilization techniques for challenging terrain.

Q: What size gravel works best? A: Angular gravel between ⅜” and ¾” provides optimal cell fill and drainage. Avoid rounded stones which don’t lock together well.

Q: How much weight can BaseCore HD support? A: 2,250 lbs per square foot load capacity makes it more than adequate for any backyard structure including RVs and heavy equipment.

Q: Do I need professional installation? A: No, BaseCore™ Geocell doesn’t require formal training or specialists to install. Anyone can become a geocell foundation expert in a matter of hours. BaseCore™ Geocell FAQs. Learn more about Geocell

Q: Will grass grow through the grids? A: With proper geotextile fabric underneath and adequate gravel depth, vegetation growth is prevented effectively.

Take Action This Weekend

Stop planning and start building. Customer Angela shares: “Used in an area where for 23 years water would stand after rain…soggy for days. Used this filled with dirt and grass seed now area is elevated no standing water.” Your perpetually muddy kennel, that tilting shed, or the play area that becomes a swamp after every rain—they can all be fixed this weekend.

BaseCore HD transforms problem areas into permanent, professional-grade foundations that handle whatever nature (or your German Shepherd) throws at them. With a 10-year guarantee and 75+ year expected lifespan, this is the last base you’ll ever need to build. Ready to build? Browse our complete shed base collection to get your BaseCore HD delivered this week.
